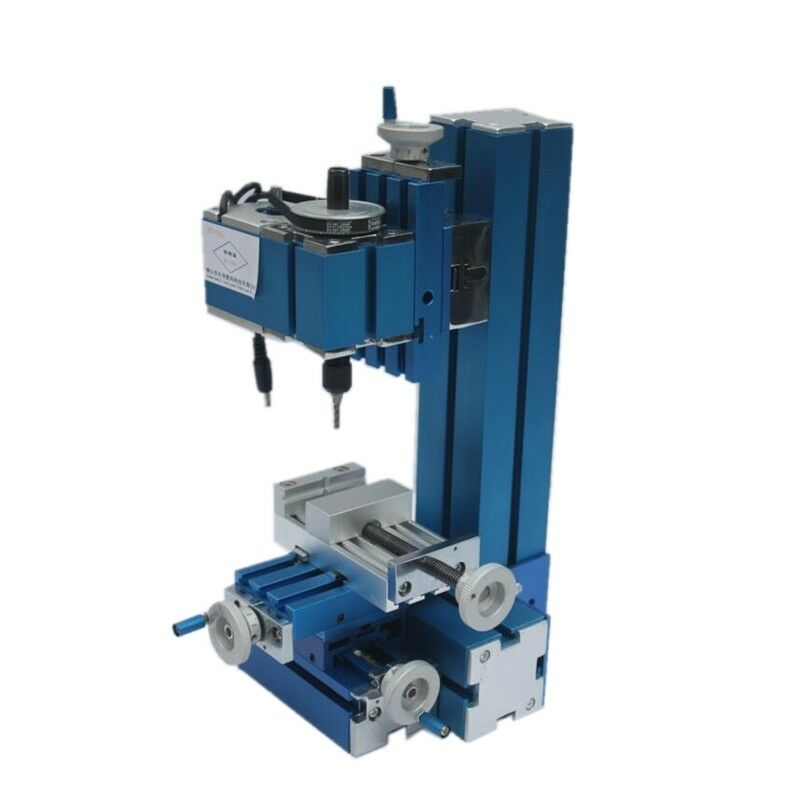

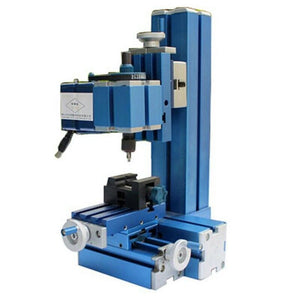

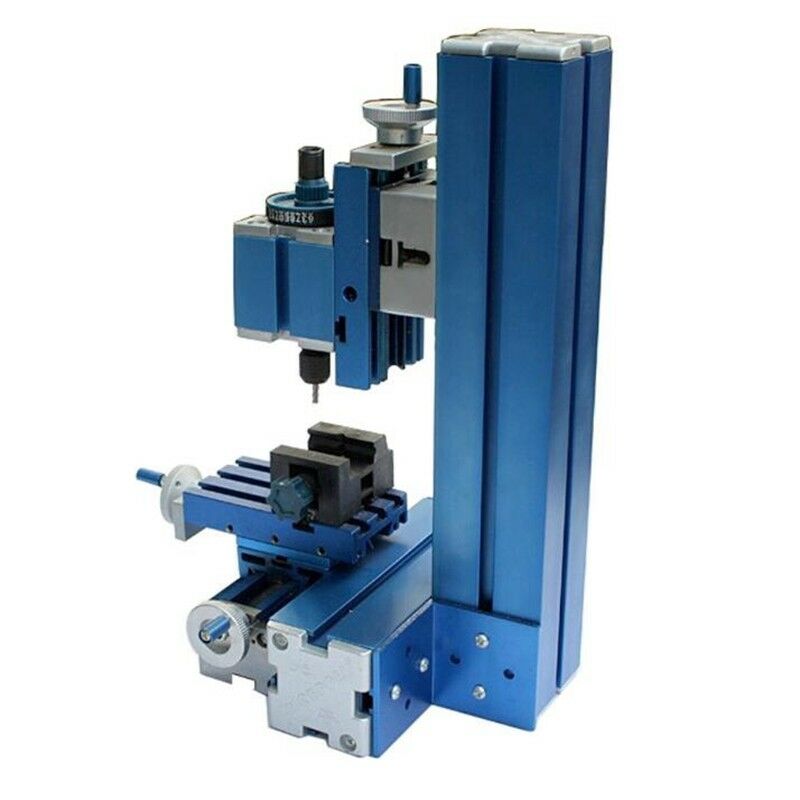

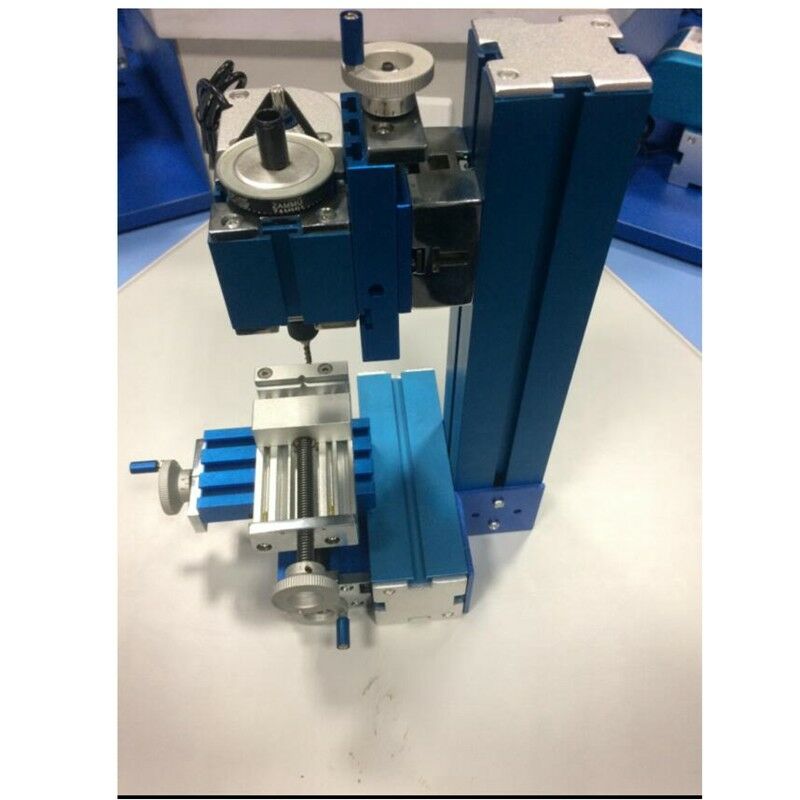

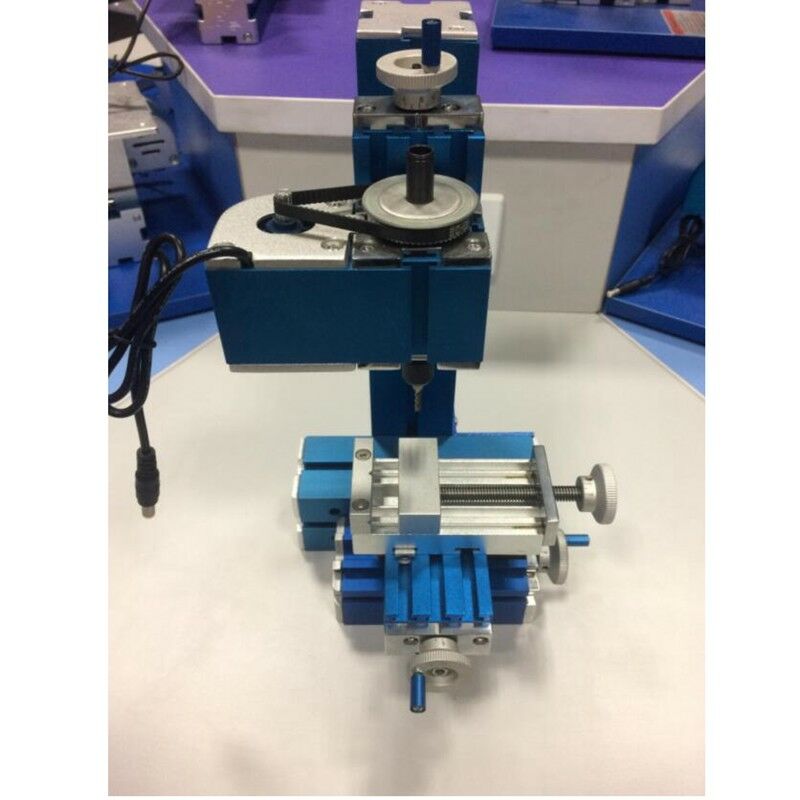

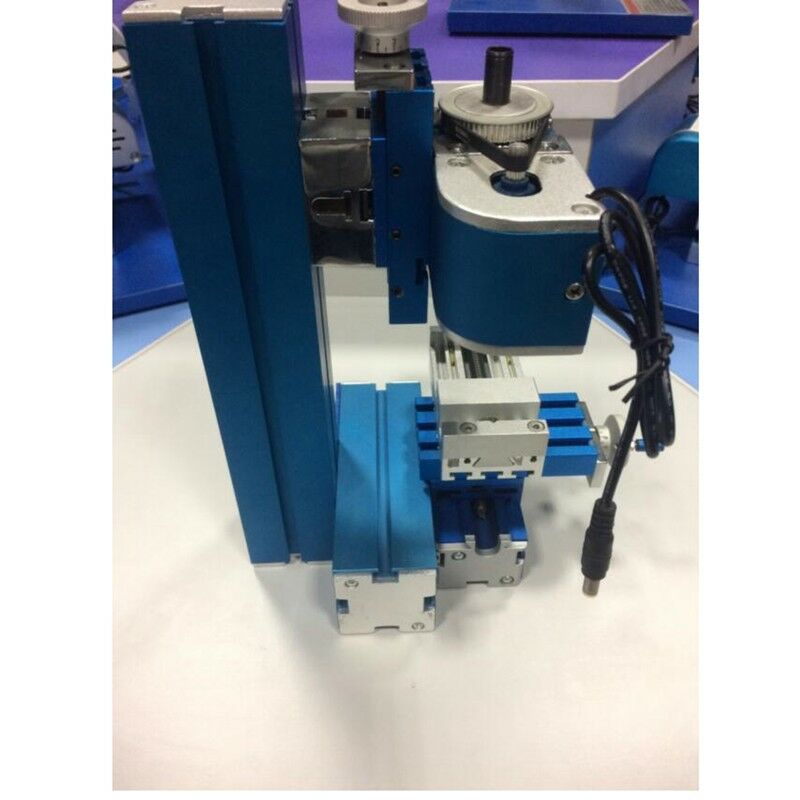

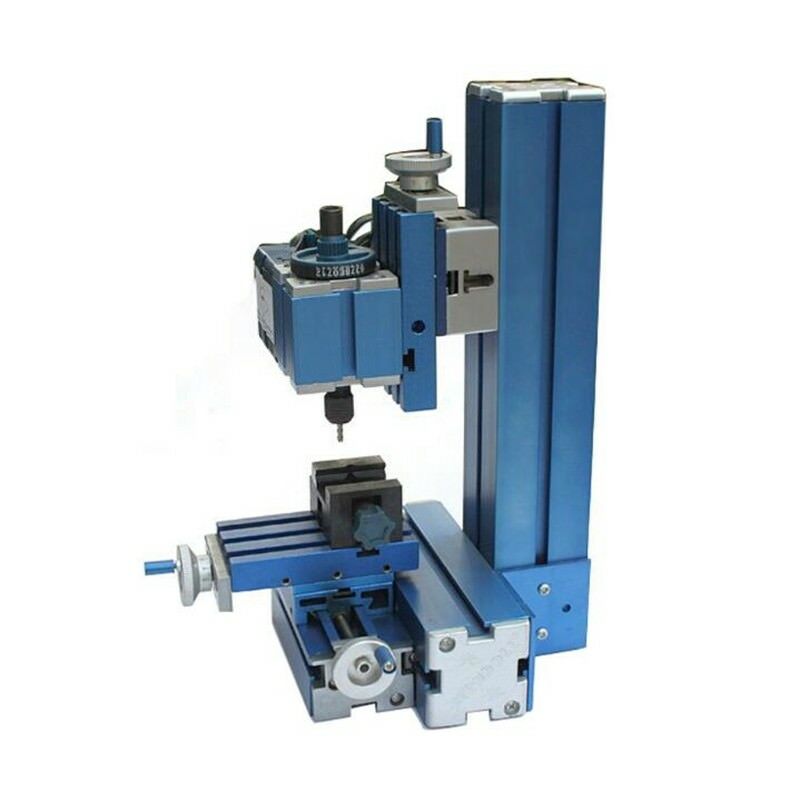

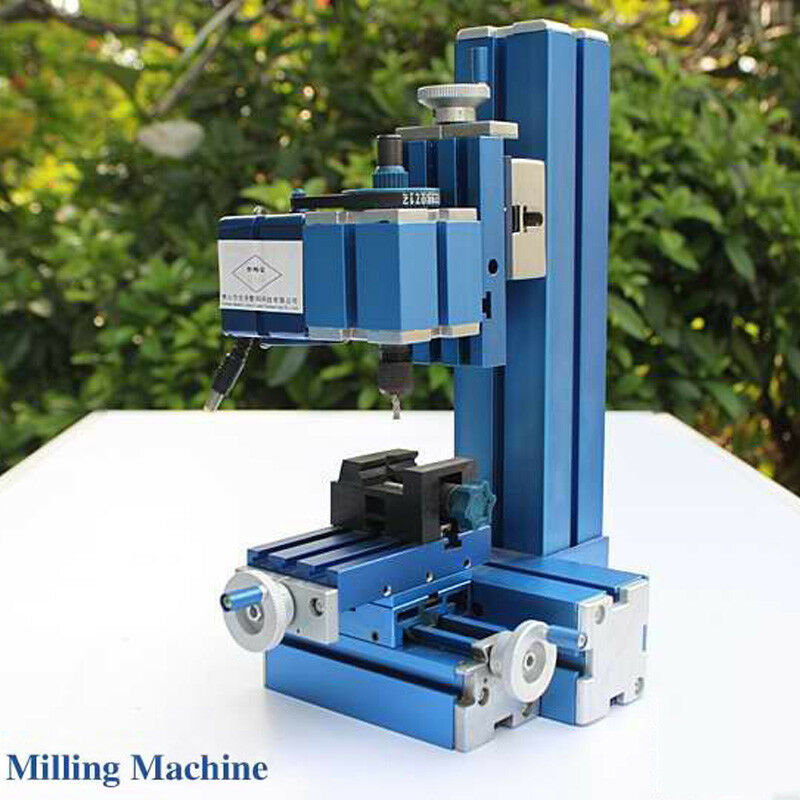

Metal Mini Milling Machine Micro DIY Woodworking Power Tool for School 100V~240V

Ship out immediately from CA, US. You can receive it in 2-4 days.

Product Description:

The main components of the main shaft box, intermediate block, connecting block, tail stock, large slider, small slider, hand wheel, support and so on are made of metal. The quality of the product is improved, more durable and more precise.

Application:

Juvenile Activity Center, School General Technical Room, Science and Technology Activity Room Equipment, Science and Technology Museum Student Science and Technology Creation.

Technical Parameters:

Input voltage: AC100V~240V / 50/60HZ

Output voltage: DC12V 2A

Motor rated power: 12W

Motor speed: 18000r/min±15% of high speed motor

Low speed motor: 10000r/min ± 15%

Spindle speed: high speed motor 3000r/min±15%

Low speed motor: 1600r/min ± 15%

Spindle jump: <0.1mm

Large slider stroke: 45mm

Small slider stroke: 35mm

Vise clamp size: 25mm*35mm

Chuck specifications: ф1, ф2, ф2.5, ф3, ф3.5, ф4, ф5, ф6

Handle scale: 0.1mm/division

Packing size: 230mm*200mm*315mm

Weight : 2.8KG

Processing ability: It can process soft metals such as copper and aluminum.

Package included:

1 set of Micro Milling Machine
