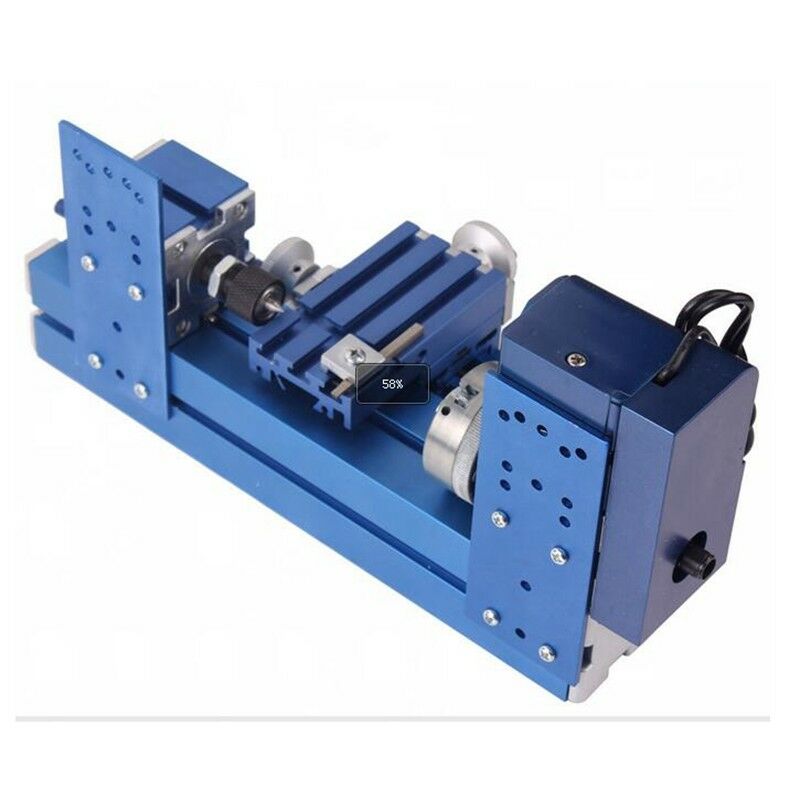

24W Mini lathe for Metal Wood DIY Tool Woodworking Hobby Model Making

Main accessories of Bittychoice Mini Lathe for Wood Metal:
The main components of the main shaft box, intermediate block, connecting block, tail stock, large slider, small slider, hand wheel, support and so on are made of metal. The quality of the product is improved, more durable and more precise.

Motorized Lathe's Application:
Youth Activity Center, School General Technical Room, Science and Technology Activity Room Equipment, Science and Technology Museum Student Science and Technology Creation.

Parameter:
Input voltage: AC100V~240V 50/60HZ
Output voltage : DC12V 2A
Motor rated power: 24W
Motor speed: High speed motor 20000r/min ± 15%
Low speed motor: 10000r/min ± 15%
Spindle speed: high speed motor 3000r/min±15%
Low speed motor: 1600r/min ± 15%
Spindle jump: <0.1mm

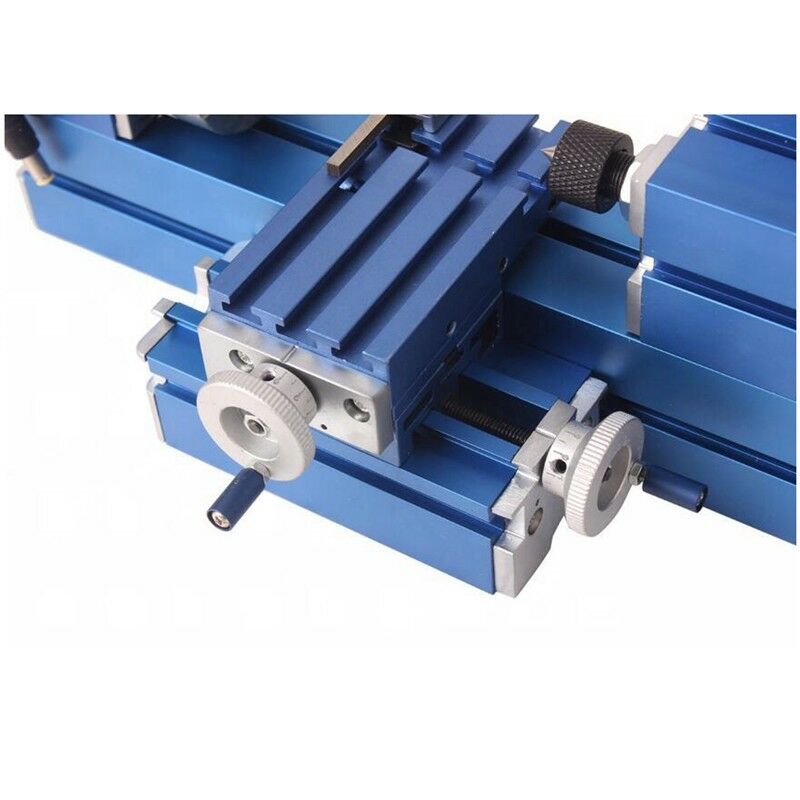

Large slider stroke: 45mm
Small slider stroke: 35mm
Center height: 25mm
Center distance: 110mm
Maximum processing diameter: 13mm positive claw, 45mm reverse claw
Three-jaw chuck clamping diameter: 13mm claw, 45mm reverse claw
Handle scale: 0.1mm/division
Packing size: 230mm*200mm*315mm
Weight: 2.2KG
Connection method: M12 * 1 screw hole
Minimum clamping size: 1.5mm * 1.5mm
Maximum clamping size: 18mm * 18mm
Processing ability: It can process soft metals such as copper and aluminum.

Package include
1 set of Mini Lathe for Metal
