Product Description:★Upgraded 12-40V 10A DC Motor Pump PWM Speed Controller and PLC voltage can be directly controlled.
★Its own power supply reverse polarity protection, control voltage over-voltage protection, 20A fast-blow ceramic fuse.
★Adjust the order of the cable to change the orientation，can control motor speed to change from 0 percent to 100 percent.
★Adjust the knob of potentiometer to change the output occupying Vacancy proportion of controller, and the motor speed will change.
★Rated Current: 5A, Max Current: 10A, Quiescent Current: 0.005A (Standby).
Parameter:Input voltage: DC 10V-30V
Control power: 120W Max
Rated current： 5A
Maximum current：10A
Speed adjustment range: 0%-100%
PWM frequency: 13kHz

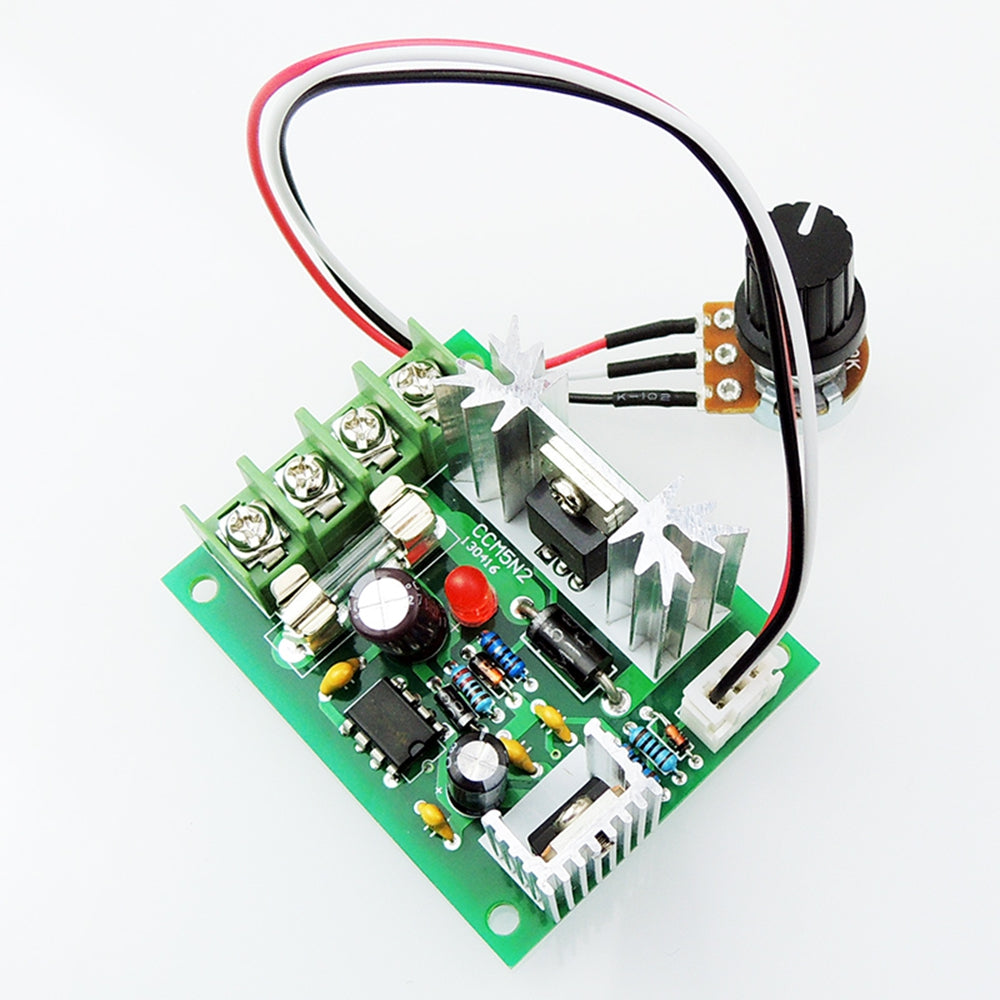

Potentiometer: resistance value B10K; wire length 20cm; opening 8mm

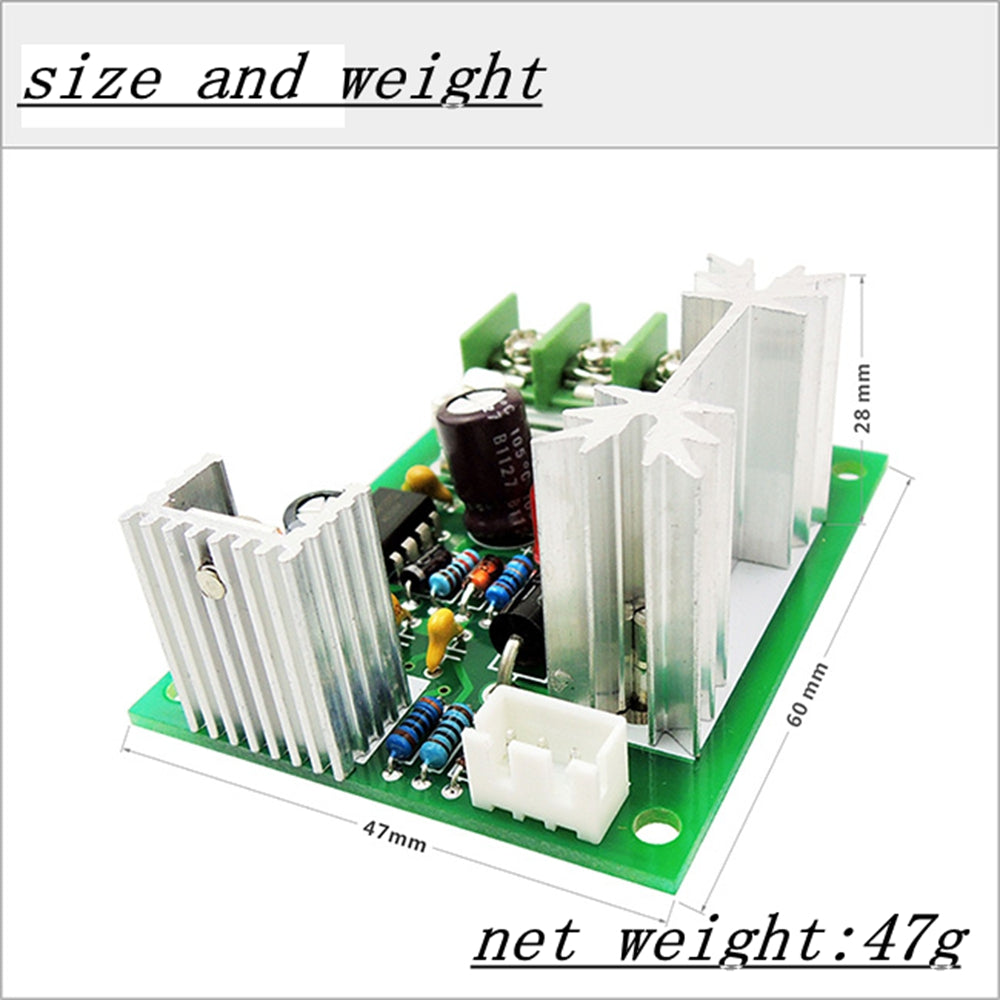

Size: 60mm*47mm*28mm
Weight: 47g
Package include:2 x A DC 10-40V PWM Unidirectional controller

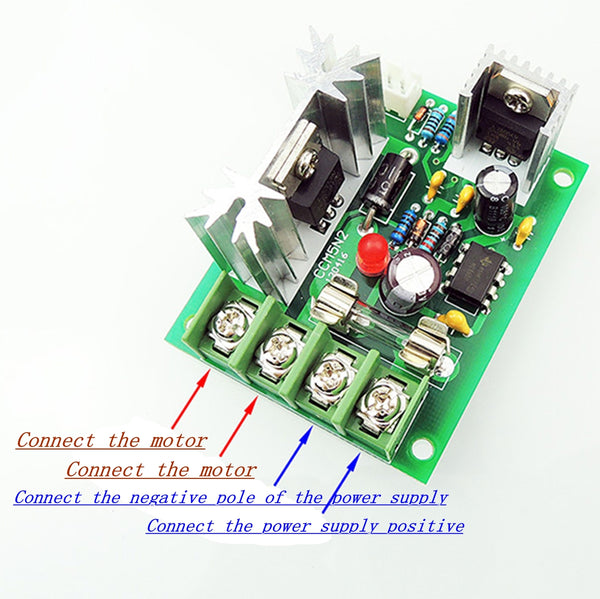

Note: If you need to control the forward and reverse, the customer can connect the positive and negative switch.

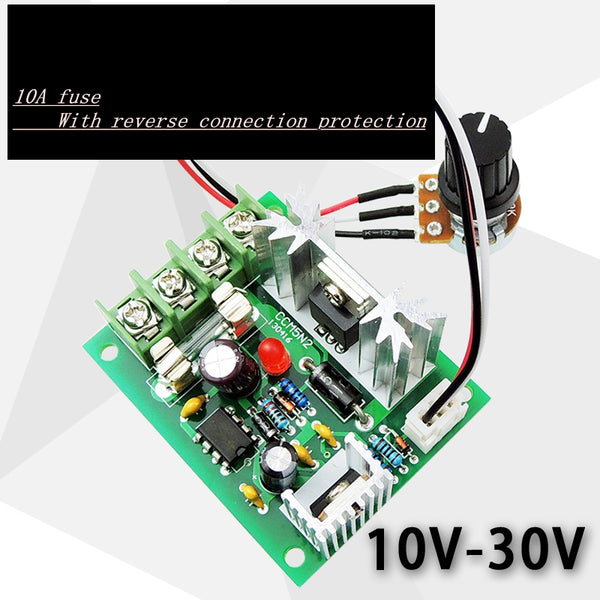

Equipped with 10A fuse (5 mm*20 mm size), power supply reverse connection protection, overvoltage and over current protection.
